Hybrid On/Off-Grid Energy Storage System

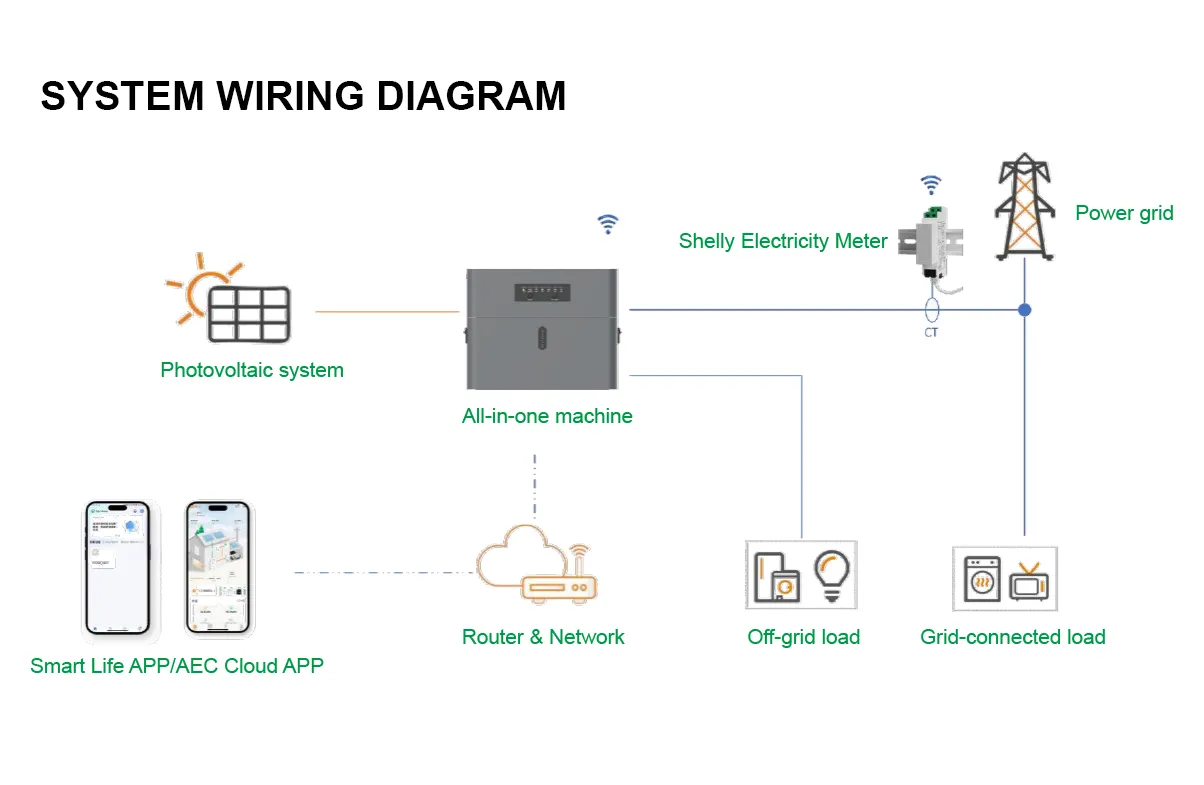

• Support photovoltaic power generation and mains power to charge batteries simultaneously, flexibly responding to different power consumption scenarios.

• Intelligently schedule the energy flow among photovoltaic power, mains power, batteries and loads to achieve the optimal power consumption strategy.

• Supports two independent photovoltaic inputs, with a maximum input power of up to 2400W and an MPPT efficiency as high as 99%, enhancing power generation efficiency.

• It supports both grid-connected operation and independent off-grid power supply. When the power grid is abnormal, it can automatically switch to off-grid mode to ensure that critical loads are not cut off from power.

• The maximum output is 1600VA, and the peak power can reach 2400VA (for 10 seconds), meeting the startup requirements of most household appliances.

• Supports "AEC Cloud" or "Smart Life" APP for real-time viewing of device status, setting of working mode and remote control.

• Battery overvoltage/over-temperature protection, PV overvoltage/overcurrent protection, inverter over-temperature load reduction/protection, abnormal grid voltage/frequency protection, AC output overload/short circuit protection
