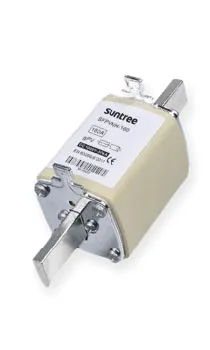

Fusível CC SFPVNH 1000 V

• Standard：IEC60269-6

• Rated Voltage：DC1000V

• Rated current: 50A、63A、80A、100A、125A、160A

• Breaking capacity：50kA

• Protection object：It is used in the photovoltaic combiner box to provide safe and reliable
   protection for overload and short-circuit current faults of PV modules and PV arrays.

• Operating class：gPV

• Applicable environment：Temperature,﹣5℃～﹢40℃；Humidity, less than 90%.
